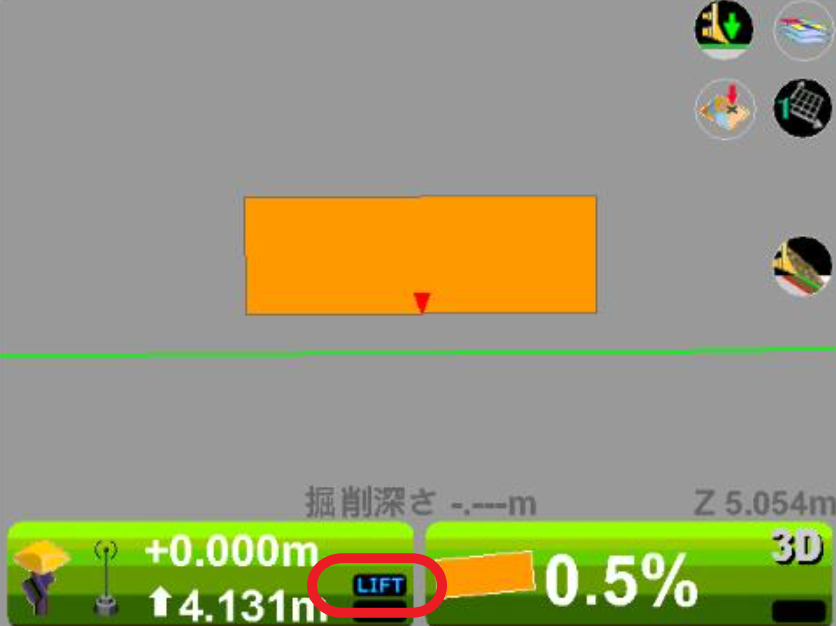

"LIFT" is displayed on the monitor.

Issue

On the monitor of Komatsu iMC Bulldozer 2.0, "LIFT" is displayed and the distance to the design surface is displayed at an unintended height.

Answer/Cause

Please cancel the "2 design mode".

Explanation/How to deal

▲The 2-design mode will be opened by clicking this button on the screen.

The 2-design mode is a function that allows the automatic control by combining two design planes.

(Example of use)

• When temporarily creating a water gradient while excavating toward the design face.
• When temporarily creating a horizontal plane while filling toward the design plane.
  etc.

If the 2-Design mode is unintentionally opened, it can be disappeared by the following methods.

1) From the menu bar, click on "File"

2) Click on "2 design planes" under "Active".

This operation will uncheck on the left of "2 design planes" and cancel it.

3) From the menu bar, touch "File" again.

4) From "Design Data" in "Active", select the data you have selected before opening the 2 design      planes.
